X3/X5

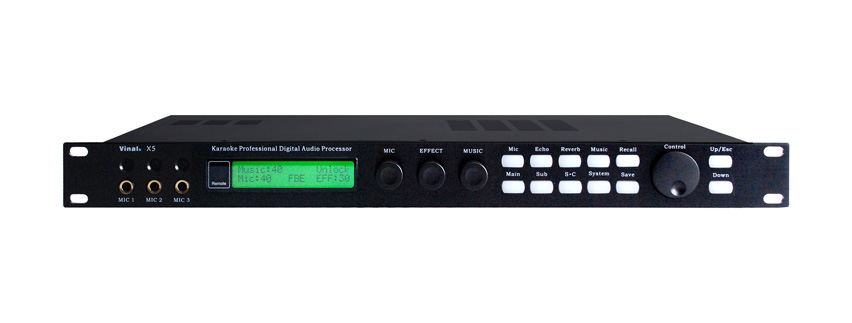

This product is a karaoke effect with speaker processor function, each function part is independently adjustable, and the corresponding PC interface, can be intuitive adjustment, easy to operate.
Features
Music
1.Music parameter balance: 7 paragraphs
2.Music to the main output high-pass filter：12dB/24dB(0Hz - 303Hz)
Microphone
1.There are four kinds of microphone FBE modes：OFF 1 2 3
2.There is a microphone pressure limit function
3.15-segment microphone parametric equalization
Effect
Echo:
1. Echo low-pass filter: 5.99Hz - 20.6KHz
2. Echo high-pass filter: 0Hz - 1000Hz
3. Echo parameters balance: 3 paragraphs
4. Echo level: 0～100%
5. Echo direct sound level: 0～100%
6. Echo pre-delay: 0～500ms
7. echo right channel pre-delay: 0～± 50% (relative to the left channel)
8. Echo total delay: 0～500ms
9. Echo right channel delay: 0～50%, (relative to the left channel echo delay time)
10. Echo repeat: 0～90%
Reverberation
1. Reverb low-pass filter adjustable range: 5.99Hz - 20.6KHz
2. Reverb high-pass filter adjustable range: 0Hz - 1000Hz
3. Reverb level adjustable range: 0～100%
4. Reverb direct sound adjustable range: 0～100%
5. Echo pre-delay adjustable range: 0～200ms
6. Reverb time adjustable range: 0～3000ms
Main output (work mode: singing / dancing (automatic / manual), including all parameters except pressure limit, delay, mute)
1. Music level: 0～200%
2. Direct sound level: 0～200%
3. Echo level: 0～200%
4. Reverb level: 0～200%
5. 5 pieces of music parameters equalization
6. Compression limiter
7. Left channel delay: 0～50ms
8. Right channel delay: 0～50ms
9. Left channel mute function
10. Right channel mute function
In the output (work mode: singing / dancing (automatic / manual), including the pressure limit, delay, mute all the parameters)
1. Music level: 0～200%
2. Direct sound level: 0～200%
3. Echo level: 0～200%
4. Reverb level: 0～200%
5. High-pass filter: 0Hz - 303Hz
6. 3-segment parametric equalization
7. Compression limiter
8. Delay: 0～50ms
9. Mute function
Subwoofer output (work mode: singing / dancing with (automatic / manual), including all parameters except pressure limit, delay, mute)
1. Music level: 0～400%
2. MIC direct sound level: 0～200%
3. High-pass filter: 12dB, Q 0.4～1.5, / Bessel 24dB / Butterworth 24dB / Link Riley 24dB / USER 12dB / USER 24dB (0Hz - 303Hz)
4.Low pass filter: 12dB, Q 0.4～1.5, / Bessel 24dB / Butterworth 24dB / Link Riley 24dB / USER 12dB / USER 24dB (0Hz - 303Hz)
5. 3-segment parametric equalization
6. Compression limiter
7. Delay: 0～50ms
8. Mute function
Post-output (work mode: singing / dancing with (automatic / manual), including all parameters except pressure limit, delay, mute)
1. Music level: 0～200%
2. Direct sound level: 0～200%
3. Echo level: 0～200%
4. Reverb level: 0～200%
5. High-pass filter: 0Hz - 303Hz
6. 3-segment parametric equalization
7. Compression limiter
8. Left channel delay: 0～50%
9. Right channel delay: 0～50%
10. Left channel mute: Mute / non-mute
11. Right channel mute: Mute / non-mute
System
1. Two music input ports: 1/2
2. Music input gain: 0dB / 3dB / 6dB (user mode can not be adjusted)
3. Keyboard lock password and system mode password
Rear panel

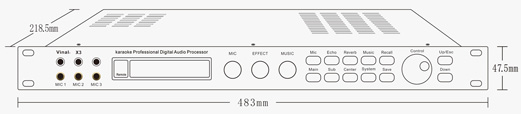

Dimensions
* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
