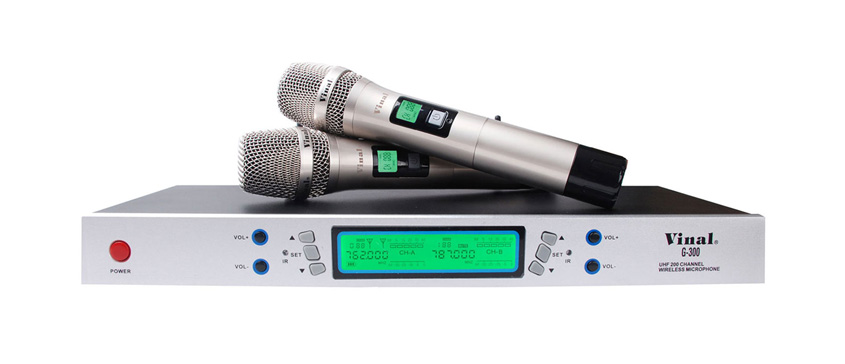

G-300
Model: G-300
Channel: 2 * 100 channels
Frequency range: 740-790MHz
Frequency response: 40-18000Hz
Sensitivity: -95～-67dBm
Distortion: ≤0.5%
Signal to noise ratio: ≥ 110dB
Effective distance:> 50 meters
Transmitting power: 3-30mW
Oscillation mode: Phase-locked loop frequency synthesis (PLL)
Modulation: FM (FM)
Frequency stability: ± 10ppm
Battery specifications: two 1.5V AA batteries
Receiving mode: superheterodyne secondary frequency conversion
Power consumption: ≤ 10W
Output: Balanced output × 2; Unbalanced output × 1
Power supply: 220VAC / 50-60Hz 12VDC

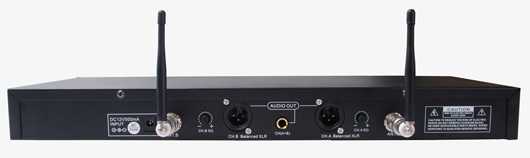

Rear panel

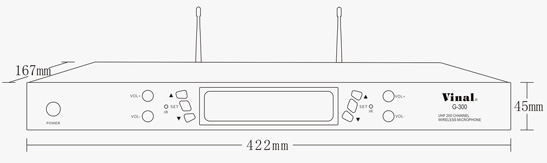

Dimensions
* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
