Vinal

THL

VA2500

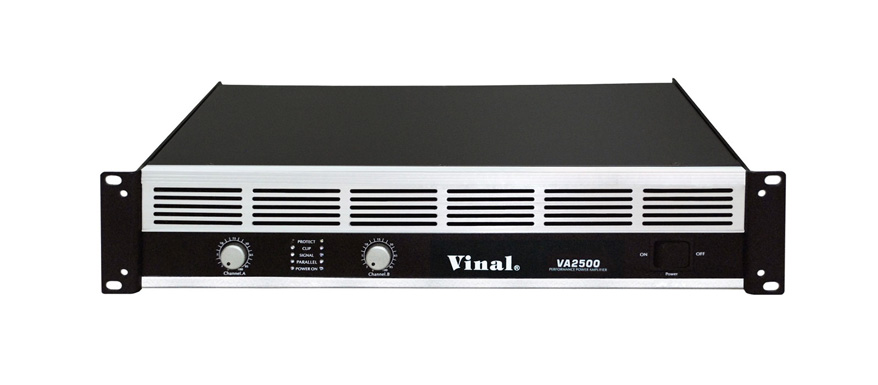

Model: VA2500

Number of input / output channels: 2

The rated power output: EIA test standard, input voltage AC230V, 1KHz, maximum harmonic distortion 1%, monaural test

8Ω load: 2 × 500W

4Ω load: 2 × 1000W

Input sensitivity: 0dB (0.775Vrms) /1.4V/26dB

Frequency response: 20-20000Hz (± 0.3dB)

Input impedance: 30KΩ (balanced / stereo) 15KΩ (unbalanced / parallel)

Conversion rate: ≥12V / us

Damping coefficient: ≥300

Channel isolation:> 60dB @ 1KHz

Signal to noise ratio:> 100dB

Total Harmonic Distortion: <0.3% 1KHz 8Ω @ 1W

Intermodulation distortion: <0.5% 8Ω @ 1W

Volume: 483 × 88 × 380mm

Net weight: 18.3Kg

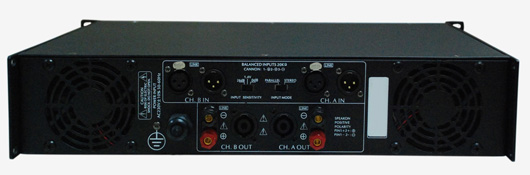

Rear panel

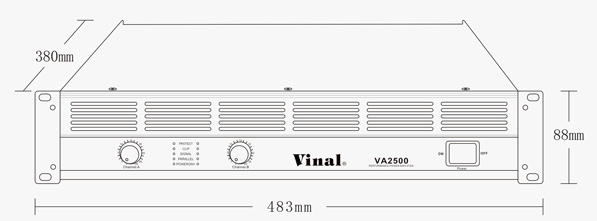

Dimensions

Features :

1. Mute low: pre-input noise microsecond shutdown, static noiseless interference; music smooth, quiet and comfortable indoor use

2. Good sound quality: low-frequency deep thick, midrange sweet and clear, treble slender; easy singing, room entertainment durable

3. High efficiency: the whole high efficiency output, low temperature work, energy saving, low carbon and environmental protection

4. Soft protection: low resistance, overheating work, continue to output, enjoy entertainment; stable performance, reliable operation

5. Small size: 2U body, short depth, easy to place the cabinet, save space

6. Structure of the United States:internal design around the channel symmetry, reasonable atmosphere,making fine;aluminum panel,high-end beautiful

* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
