VA4600
Model: VA4600
Number of input / output channels: 4
The rated power output: EIA test standard, input voltage AC230V, 1KHz, maximum harmonic distortion 1%, monaural test
8Ω load: 4 × 600W
Input Sensitivity: 0dB (0.775Vrms)
Frequency response: 20-20000Hz (± 0.3dB)
Input impedance: 30KΩ (balanced / stereo) 15KΩ (unbalanced / parallel)
Conversion rate: ≥12V / us
Damping coefficient: ≥300
Channel isolation:> 60dB @ 1KHz
Signal to noise ratio:> 90dB
Total Harmonic Distortion: <0.1% 1KHz 8Ω @ 1W
Intermodulation distortion: <0.2% 8Ω @ 1W
Volume: 483 × 88 × 380mm
Net weight: 20kg

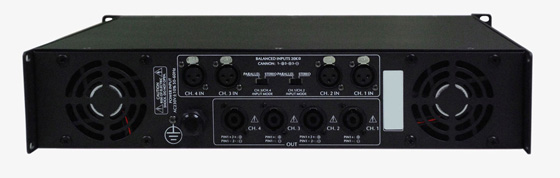

Rear panel

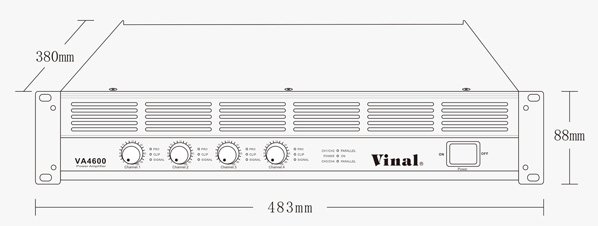

Dimensions
Features
◇ Convenient and flexible: the use of flexible, through the set, four-channel use.
◇ Good sound quality: the use of Class AB lines, low frequency thick, midrange sweet, treble delicate.
◇ Protection: a variety of protection readily available, the use of security and stability.
◇ Small size: 2U body, short depth, easy to place the cabinet, save space.
◇ Structural beauty: internal design around the channel symmetry, reasonable atmosphere, making fine. Aluminum panel, high-end beautiful.
* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
