PC-830
Model: PC-830
Channel number: 10
Adjuvant channel number: 2
Loading per channel: 220V / 15A, 3300W / channel
Sequence time per channel: 1sec (software configurable)
Link:Allow
Control: Lamp-on switch, Bypass-button
Line cable: 3-core, microphone
Indicator: Power / Channel on / Bypass
Output connector : U.S.A standard three wire AC Connector
Control signal link connection: TRS
Power: 110V-240V ～/ 50-60Hz, Grounded wire is needed
Size: length 483mm × depth 315mm × height 45mm
Weight: 5Kg
Warrant: 18 months

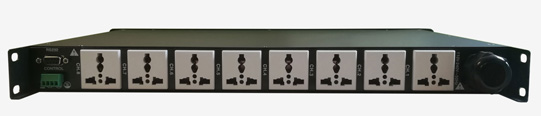

Rear panel

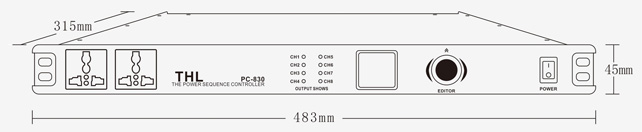

Dimensions
* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
