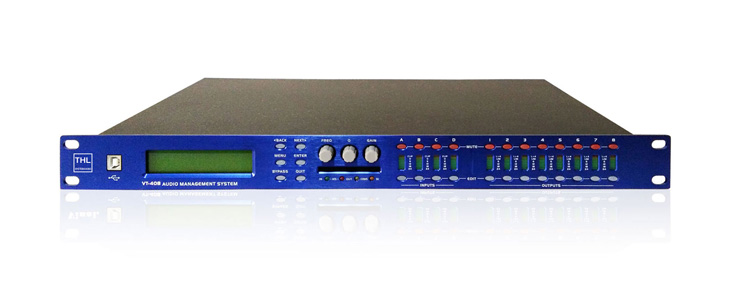

VT-408
VT-408
Input: 4 channels, maximum gain + 15dB, 10 kΩ balanced input
Output: 8 channels, maximum gain + 15dB, 600 ohm balanced output
Output impedance: 1 kilohms
Dynamic range:> 108dBu Frequency response range 22Hz-22kHz
Frequency response range: <+/- 0.25dBu, 15Hz-20kHz
Distortion: <0.01%, 20Hz-20kHz @ + 10dBu balanced input
Sampling frequency: 96kHz
Signal to noise ratio:> 90dBu, 20Hz-20kHz
A / D & D / A conversion: 4-bit input and output structure: 8 mono, 4 stereo
High and low pass filter: 12db-Bworth, 12db-Bessel, 12db-Lnkwtz, 18db-Bworth, 18db-Bessel, 24db-Bworth, 24db-Bessel, 24db-Lnkwtz, 48db-Bworth, 48db-Bessel, 48db-Lnkwtz
Equalizer: Bandwidth 0.05 to 3.0 oct, frequency 20Hz to 20KHz. Gain ± 20dB, step 0.1dB
Delay: 0ms to 1000ms
Delayed start: 21us
Front panel control: up and down control keys, system menu, through button, exit button, OK button, gain, frequency,input selection A, B, C, D, mute, edit selection and output channel adjustment control
Input display: -20, -10,0dB, + 10, CLIP and 2 × 20LED display
Output display: -20, -10,0dB, LIMIT, CLIP and 2 × 20LED display
Save settings: 30 user programs are dynamically saved
Size: 483mm (H) × 45mm (W) × 285mm (D)
Power supply: 50 / 60Hz, 110v-240v AC power
Power consumption: <30W
Rear panel

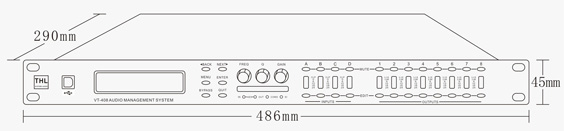

Dimensions

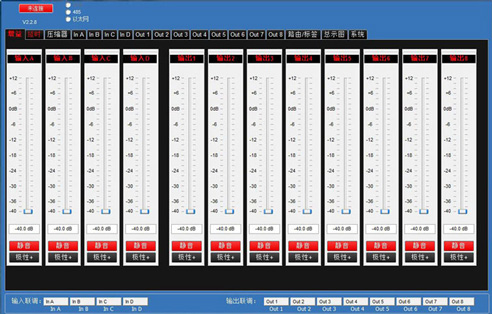

Debug interface
* The picture is for reference only, the appearance of the subject; subject to change without notice, the company has the final interpretation of the above content.
